| F | 26.1mm |
| R | 34.5mm |
| S | 6.3mm |
| Finish | Galvanised |
| m/100kg | 128m/100kg |
| Nominal Size | 6mm |

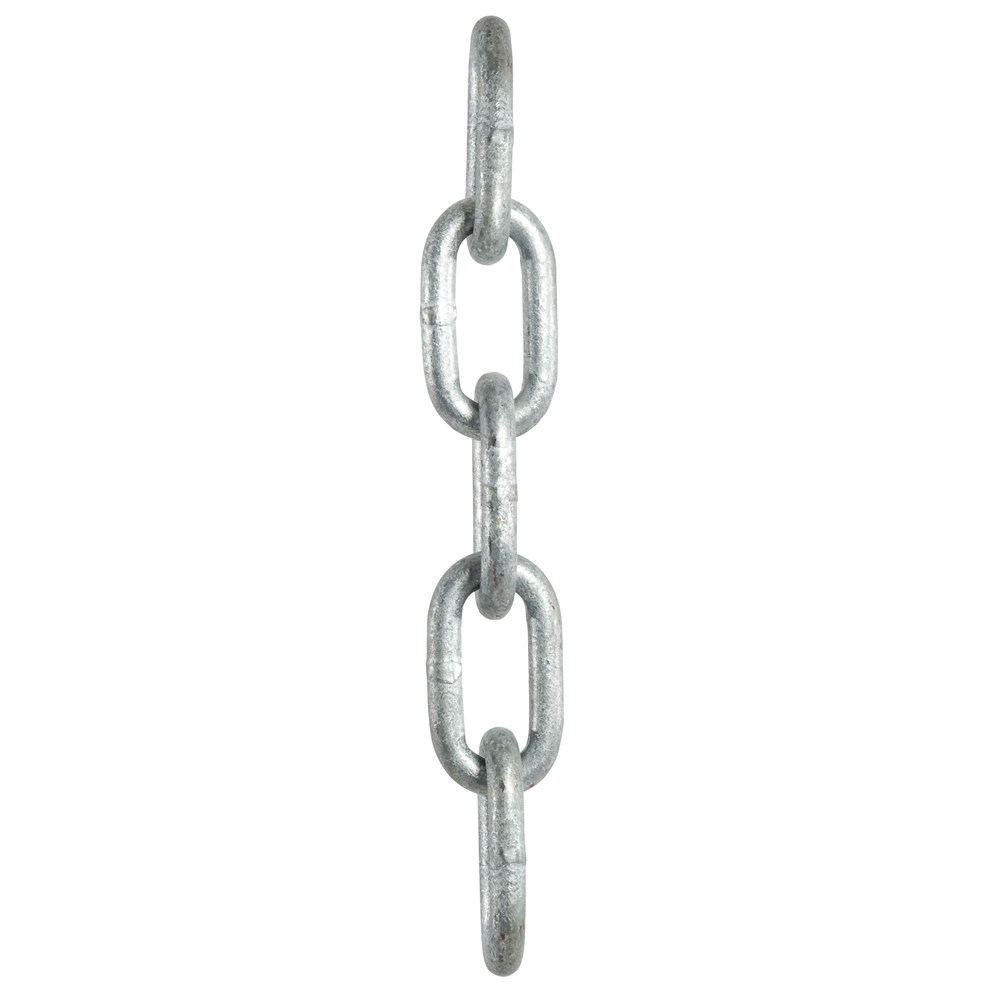

The Beaver Galvanised Proof Coil Chain - Long Link 6mm is a general purpose commercial chain for tie-downs, gates, barriers and light restraint work, not lifting. It is a non-rated chain made from low carbon steel, so it carries no working load limit and must not be used in any lifting application. The 6mm nominal size runs a 6.3mm material thickness, with a 26.1mm inside link length and 34.5mm outside length.
At 128m per 100kg, this is the lightest option in the long link range, which makes it easy to handle and run through hardware on smaller jobs. The long link pitch gives you fewer links over the same distance and more room for hooks and shackles. A galvanised finish helps it hold up outdoors and around wash-down areas. If you need to lift, step up to a properly rated grade chain instead.
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 130304 | 4mm | 4mm | 25.4mm | 18.6mm | Galvanised | 318m/100kg |
| 130305 | 5mm | 5mm | 29.3mm | 21.8mm | Galvanised | 206m/100kg |
| 130306 | 6mm | 6.3mm | 34.5mm | 26.1mm | Galvanised | 128m/100kg |
| 130308 | 8mm | 8mm | 41.2mm | 31.9mm | Galvanised | 78.1m/100kg |
| 130310 | 10mm | 10mm | 49mm | 38mm | Galvanised | 50.2m/100kg |
