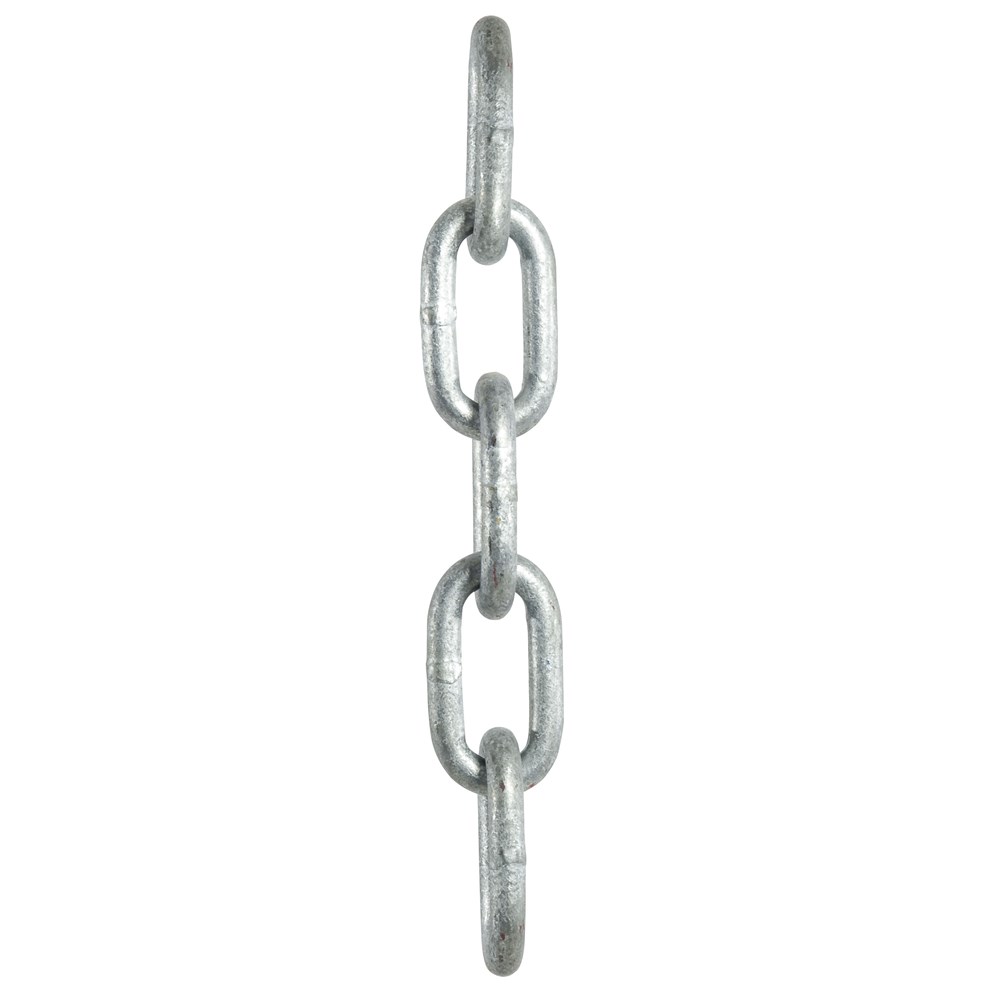

Beaver Galvanised Proof Coil Chain - Long Link 4mm
130304per Each
$2.29 inc GSTTrade $2.06, save $0.23Trade accounts save 10%. Apply with your ABN
| F | 18.6mm |
| R | 25.4mm |
| S | 4mm |
| Finish | Galvanised |
| m/100kg | 318m/100kg |
| Nominal Size | 4mm |
About this product
The Beaver Galvanised Proof Coil Chain - Long Link 4mm is a general purpose commercial chain for restraint, fencing, gates and light securing work around the yard or site. It is made from low carbon steel with a galvanised finish, and it is a non-rated chain, so it is not suitable for lifting. The 4mm figure is the material thickness, with a link length of 25.4mm and an outside width of 18.6mm.
This is the lightest size in the long link range, running 318m per 100kg, so it handles easily and suits jobs where a heavier chain would be overkill. The long link pattern gives longer, more open links than short link chain, which makes it easier to hook onto and quicker to thread through eyes and brackets. If the job involves lifting a load, step up to a properly rated grade chain instead.
Common questions
- can you use 4mm proof coil chain for lifting
- No. Proof coil chain is non-rated and is not suitable for lifting purposes, so use a rated lifting chain for any overhead or load bearing work.
- what is the 4mm on proof coil chain measuring
- The 4mm is the nominal material size, meaning the thickness of the steel in each link. The link itself measures 25.4mm long and 18.6mm across the outside.
- what is proof coil chain made of
- It is manufactured from low carbon steel and comes with a galvanised finish for general purpose use.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 130304 | 4mm | 4mm | 25.4mm | 18.6mm | Galvanised | 318m/100kg |
| 130305 | 5mm | 5mm | 29.3mm | 21.8mm | Galvanised | 206m/100kg |
| 130306 | 6mm | 6.3mm | 34.5mm | 26.1mm | Galvanised | 128m/100kg |
| 130308 | 8mm | 8mm | 41.2mm | 31.9mm | Galvanised | 78.1m/100kg |
| 130310 | 10mm | 10mm | 49mm | 38mm | Galvanised | 50.2m/100kg |
