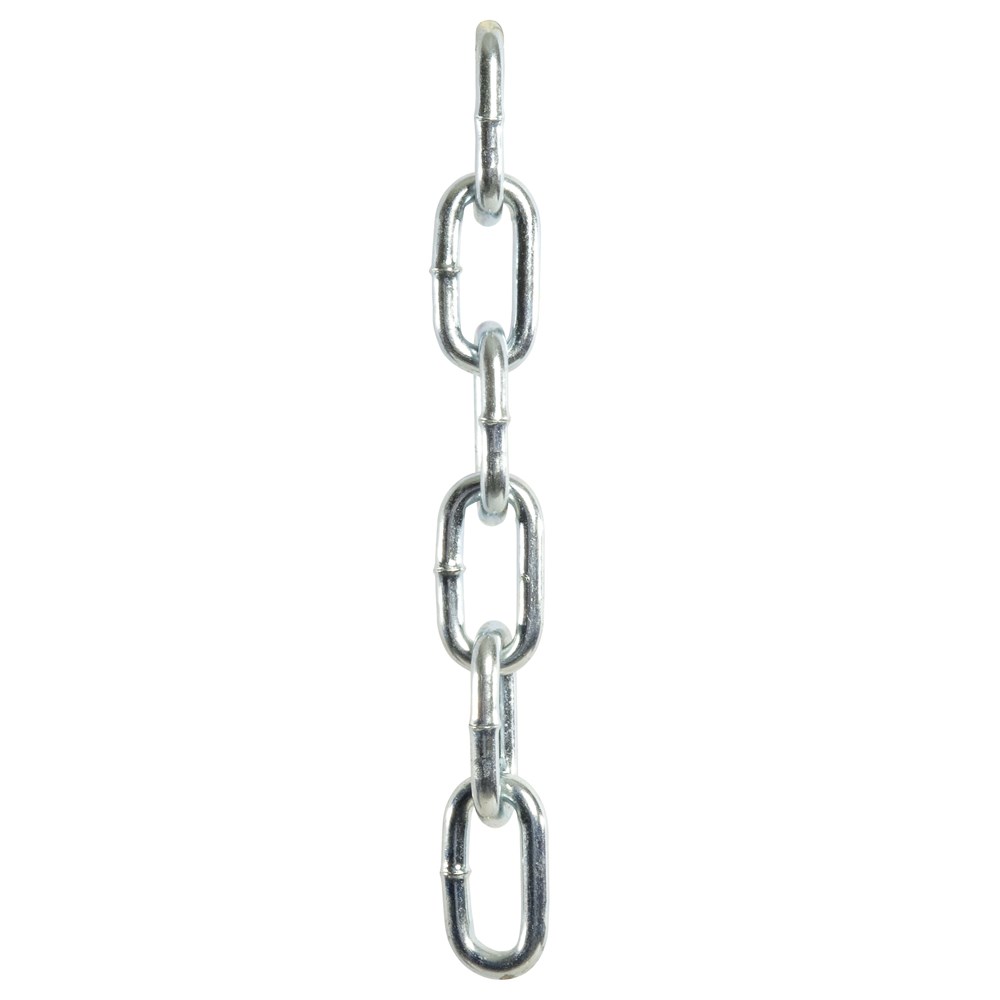

Beaver Electro Galvanised Proof Coil Chain - Long Link 5mm
130205per Each
$2.39 inc GSTTrade $2.15, save $0.24Trade accounts save 10%. Apply with your ABN
| F | 21.8mm |
| R | 29.3mm |
| S | 5mm |
| Finish | Electro Galvanised |
| m/100kg | 206m/100kg |
| Nominal Size | 5mm |
About this product
The Beaver Electro Galvanised Proof Coil Chain - Long Link 5mm is a general purpose commercial chain for restraint, fencing, gates, barriers and light tie-down work. It is a non-rated chain made from low carbon steel, so it is not suitable for lifting. At 5mm it is the lightest of the three sizes in the range, running 206m per 100kg, which makes it easy to handle and cut to the job.
The long link profile measures 21.8mm inside and 29.3mm outside, giving plenty of room for hooks, shackles, padlocks and pins to pass through. The electro galvanised finish keeps surface rust down in dry and sheltered conditions. If you need something for a load under a crane hook, step up to a rated grade chain instead.
Common questions
- can you lift with 5mm proof coil chain
- No. It is a non-rated chain for general purpose use only and is not suitable for lifting.
- what is proof coil chain made of
- Low carbon steel, with an electro galvanised finish for basic corrosion resistance.
- what does long link mean on this 5mm chain
- The links are longer than standard, with a 21.8mm internal and 29.3mm external dimension, so hooks, pins and padlocks fit through easily.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 130205 | 5mm | 5mm | 29.3mm | 21.8mm | Electro Galvanised | 206m/100kg |
| 130206 | 6mm | 6.3mm | 34.5mm | 26.1mm | Electro Galvanised | 128m/100kg |
| 130208 | 8mm | 8mm | 41.2mm | 31.9mm | Electro Galvanised | 78.1m/100kg |
