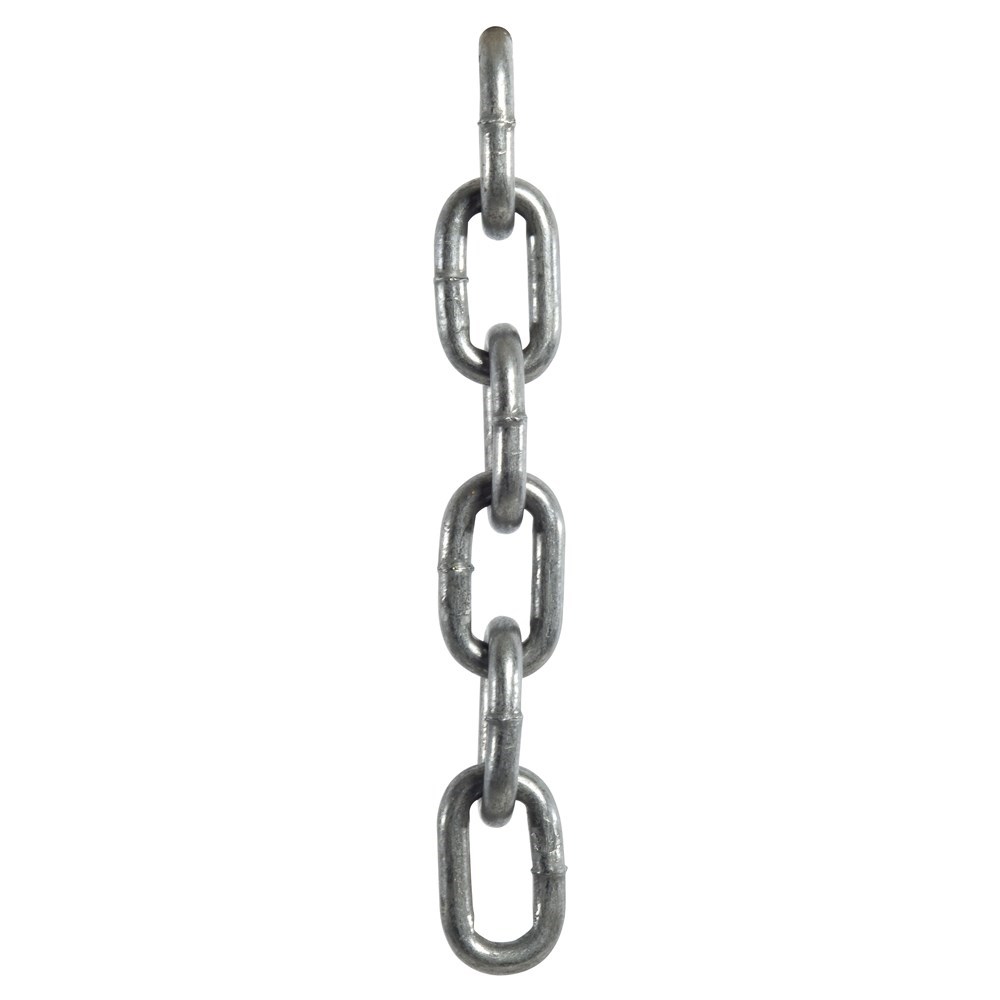

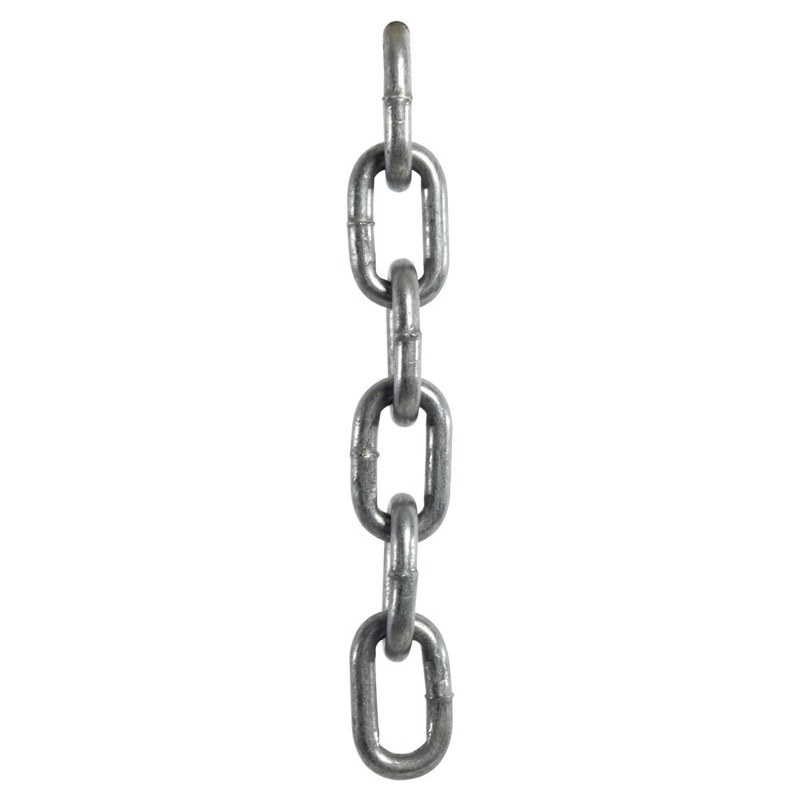

Beaver Self Colour Proof Coil Chain - Long Link 10mm
130110per Each
$10.93 inc GSTTrade $9.84, save $1.09Trade accounts save 10%. Apply with your ABN
| F | 38mm |
| R | 49mm |
| S | 10mm |
| Finish | Self Colour |
| m/100kg | 52.9m/100kg |
| Nominal Size | 10mm |
About this product
The Beaver Self Colour Proof Coil Chain - Long Link 10mm is a general purpose commercial chain for restraint, fencing, barriers and similar site jobs. It is made from low carbon steel with a self colour finish, and it is non-rated, so keep it well away from any lifting work. The 10mm size is the heaviest pull in the long link range, with 10mm material, 38mm across the F dimension and 49mm on R, running at 52.9m per 100kg.
"Proof coil" refers to the consistent link count through a length, which is what keeps the chain feeding evenly through a sprocket or hook. The longer link shape and the 10mm bar suit work where you want a bit of weight and a chain that is easy to handle by hand. Self colour has no protective coating, so give it a wipe and a light oil if it is living outdoors.
Common questions
- can you lift with 10mm proof coil chain
- No. Beaver proof coil chain is non-rated and is not suitable for lifting purposes, it is for general purpose use only.
- what is proof coil chain made of
- Low carbon steel, finished in self colour with no protective coating applied.
- how much does 10mm long link proof coil chain weigh
- It runs at 52.9m per 100kg, so roughly 1.9kg for every metre of the 10mm size.
Full specifications
| Product Code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 130104 | 4mm | 4mm | 25.4mm | 18.6mm | Self Colour | 355m/100kg |
| 130105 | 5mm | 5mm | 29.3mm | 21.8mm | Self Colour | 217m/100kg |
| 130106 | 6mm | 6.3mm | 34.5mm | 26.1mm | Self Colour | 135m/100kg |
| 130108 | 8mm | 8mm | 41.2mm | 31.9mm | Self Colour | 82.2m/100kg |
| 130110 | 10mm | 10mm | 49mm | 38mm | Self Colour | 52.9m/100kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
