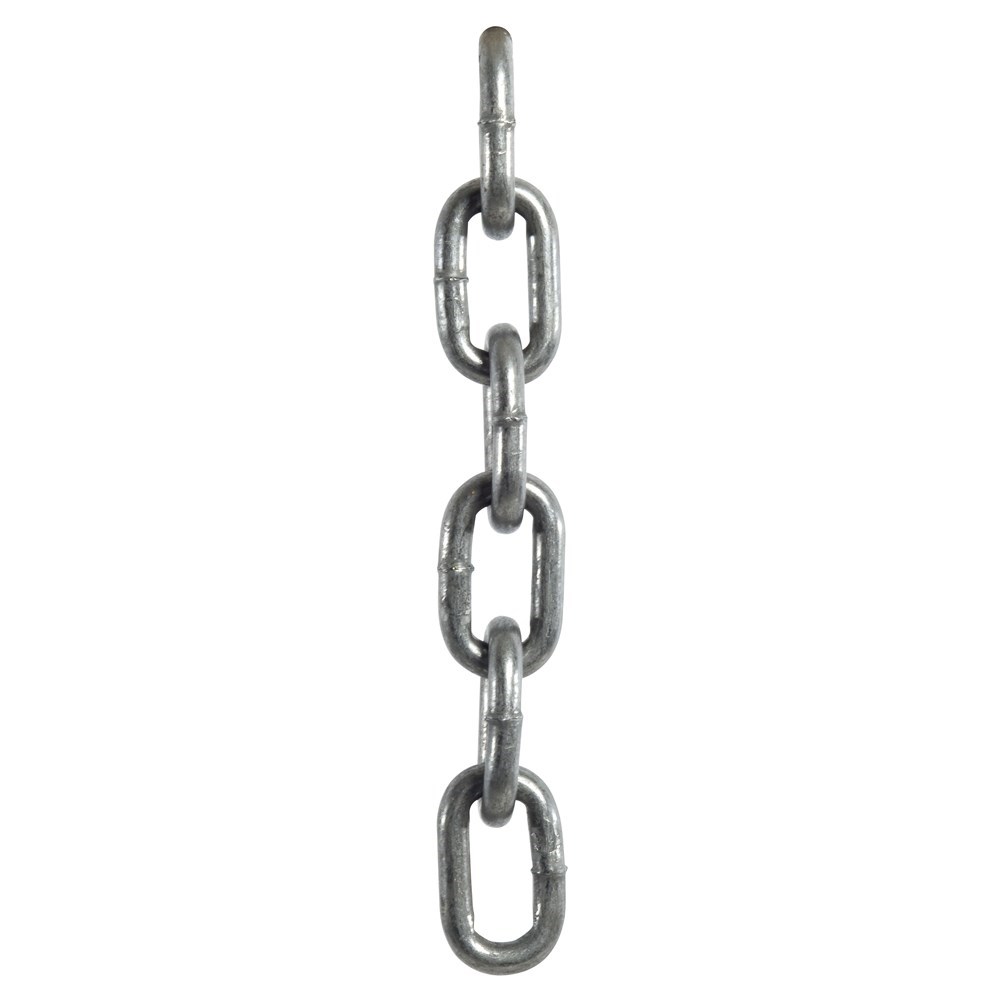

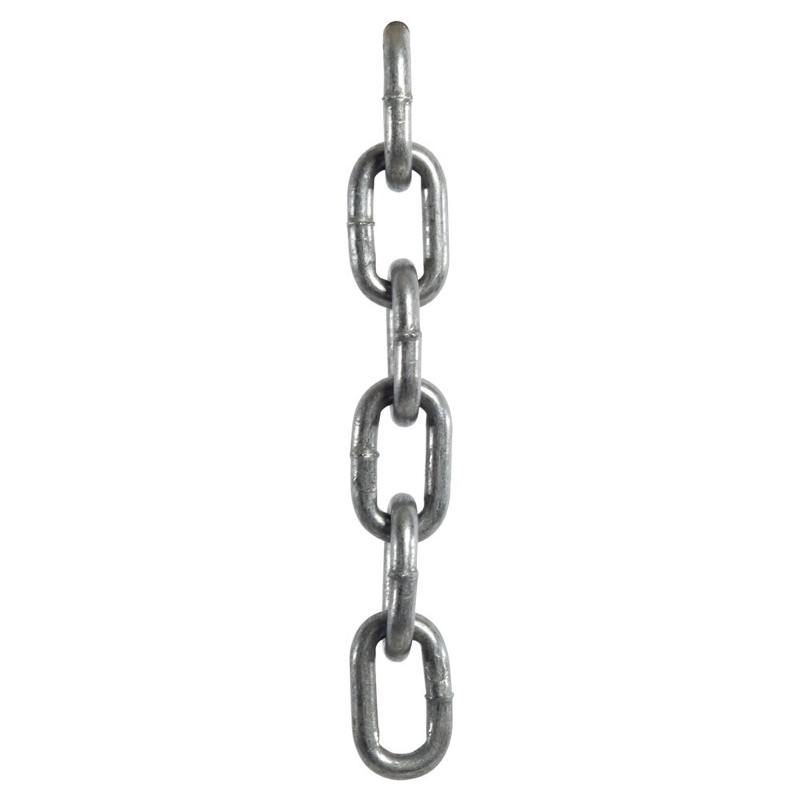

Beaver Self Colour Proof Coil Chain - Long Link 8mm
130108per Each
$6.36 inc GSTTrade $5.72, save $0.64Trade accounts save 10%. Apply with your ABN
| F | 31.9mm |
| R | 41.2mm |
| S | 8mm |
| Finish | Self Colour |
| m/100kg | 82.2m/100kg |
| Nominal Size | 8mm |
About this product
The Beaver Self Colour Proof Coil Chain - Long Link 8mm is a general purpose commercial chain for restraint, fencing, gates and light tie-down jobs around the yard or site. It is a non-rated chain made from low carbon steel, so it is not suitable for lifting. At 8mm section size it sits in the heavier half of the range, with a 31.9mm inside link width and 41.2mm link length, and runs 82.2m per 100kg.
The long link profile gives you more open links for a given length, which makes it easier to hook, thread and pin than short link chain. The self colour finish means bare steel with no coating, so keep it out of the weather or give it a wipe of oil if it is going to sit outside. If your job needs a rated chain, step up to a grade lifting chain instead.
Common questions
- can you use beaver proof coil chain for lifting
- No. Proof coil chain is a non-rated chain intended for general purpose use only, and it is not suitable for lifting.
- what does proof coil mean on chain
- Proof coil refers to the number of consistent links in any one length of chain. It is not a load rating.
- what is the difference between long link and short link 8mm chain
- Long link has longer, more open links, in this case 41.2mm long with a 31.9mm inside width, which makes threading and hooking easier than short link chain of the same 8mm size.
Full specifications
| Product Code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 130104 | 4mm | 4mm | 25.4mm | 18.6mm | Self Colour | 355m/100kg |
| 130105 | 5mm | 5mm | 29.3mm | 21.8mm | Self Colour | 217m/100kg |
| 130106 | 6mm | 6.3mm | 34.5mm | 26.1mm | Self Colour | 135m/100kg |
| 130108 | 8mm | 8mm | 41.2mm | 31.9mm | Self Colour | 82.2m/100kg |
| 130110 | 10mm | 10mm | 49mm | 38mm | Self Colour | 52.9m/100kg |
