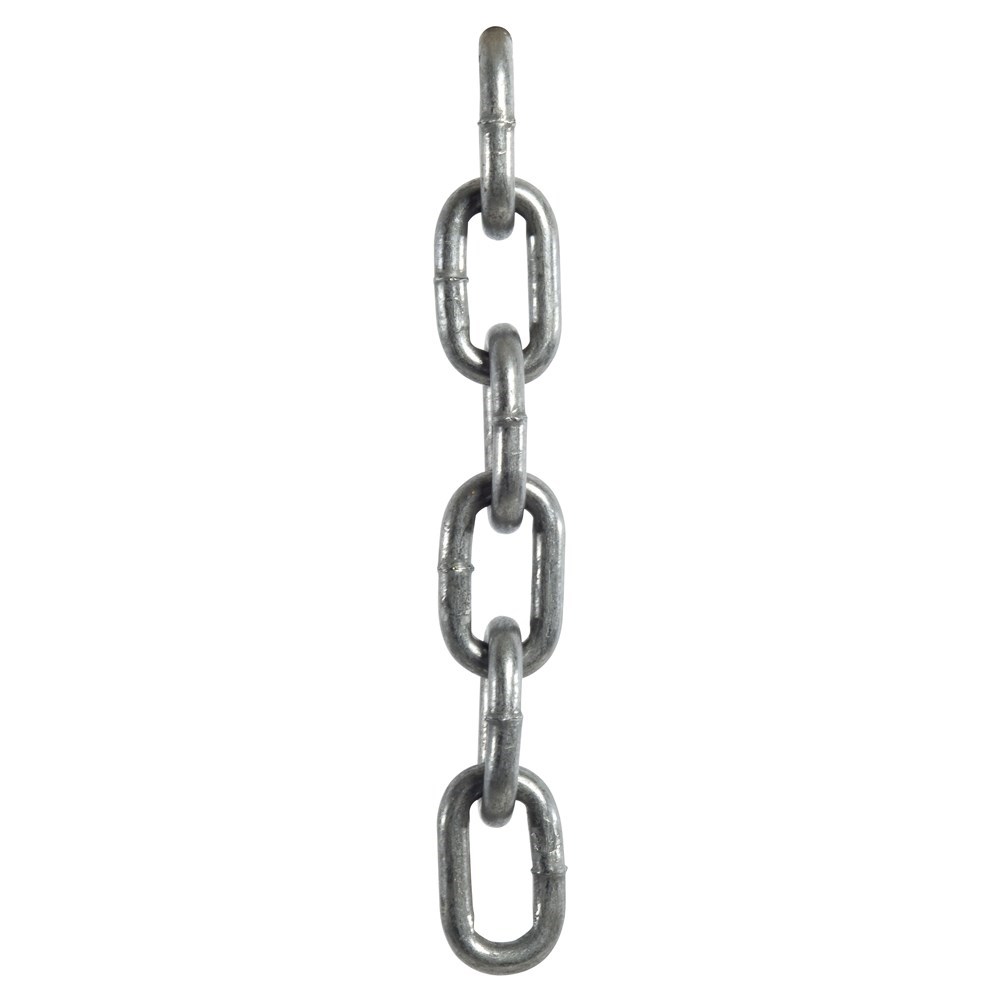

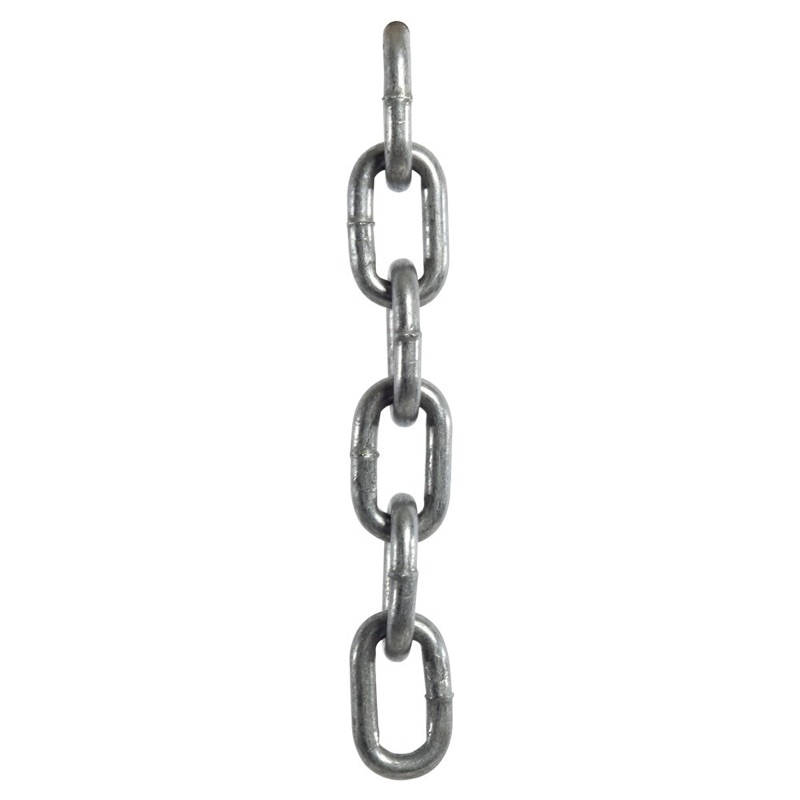

Beaver Galvanised Proof Coil Chain - Regular Link 16mm
100316per Each
$36.20 inc GSTTrade $32.58, save $3.62Trade accounts save 10%. Apply with your ABN
| F | 56mm |
| R | 60mm |
| S | 15.8mm |
| Finish | Galvanised |
| m/100kg | 19m/100kg |
| Nominal Size | 16mm |
About this product
The Beaver Galvanised Proof Coil Chain - Regular Link 16mm is a non-rated commercial chain for general purpose restraint and securing work, not for lifting. It is made from low carbon steel with a hot dipped galvanised finish, so it handles outdoor and wash-down conditions better than bare steel. The 16mm nominal size runs 15.8mm material with a 56mm link pitch and 60mm outside width, making it the heaviest gauge in the regular link range.
At roughly 19m per 100kg, this size is noticeably heavier to handle than the smaller gauges, so it suits fixed jobs more than gear you move around all day. Think gate and barrier chain, fencing, marine and yard work, or anything that needs bulk and corrosion resistance. The term proof coil refers to the consistent link count in a given length, not a load rating. If the job involves lifting, step up to a properly rated grade chain.
Common questions
- can you lift with 16mm proof coil chain
- No. Beaver proof coil chain is non-rated and not suitable for lifting purposes, so use a rated lifting chain for any overhead or load bearing work.
- what is 16mm proof coil chain made of
- Low carbon steel with a hot dipped galvanised finish, which gives it decent corrosion resistance for outdoor and coastal use.
- how heavy is 16mm galvanised proof coil chain
- It works out to about 19m per 100kg, making it the heaviest gauge in the Beaver regular link proof coil range.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 100303 | 3mm | 3mm | 16.6mm | 13.1mm | Galvanised | 534m/100kg |
| 100304 | 4mm | 3.9mm | 20mm | 15.6mm | Galvanised | 321m/100kg |
| 100305 | 5mm | 4.7mm | 25mm | 18mm | Galvanised | 230m/100kg |
| 100306 | 6mm | 6mm | 27mm | 24mm | Galvanised | 132m/100kg |
| 100308 | 8mm | 7.6mm | 35.8mm | 29.2mm | Galvanised | 86m/100kg |
| 100310 | 10mm | 9.5mm | 43.4mm | 34mm | Galvanised | 56m/100kg |
| 100313 | 13mm | 13mm | 50mm | 46mm | Galvanised | 28m/100kg |
| 100316 | 16mm | 15.8mm | 60mm | 56mm | Galvanised | 19m/100kg |
| 100320 | 20mm | 19.8mm | 72mm | 70mm | Galvanised | 12m/100kg |
| 100324 | 24mm | 25mm | 90mm | 85mm | Galvanised | 7.8m/100kg |
