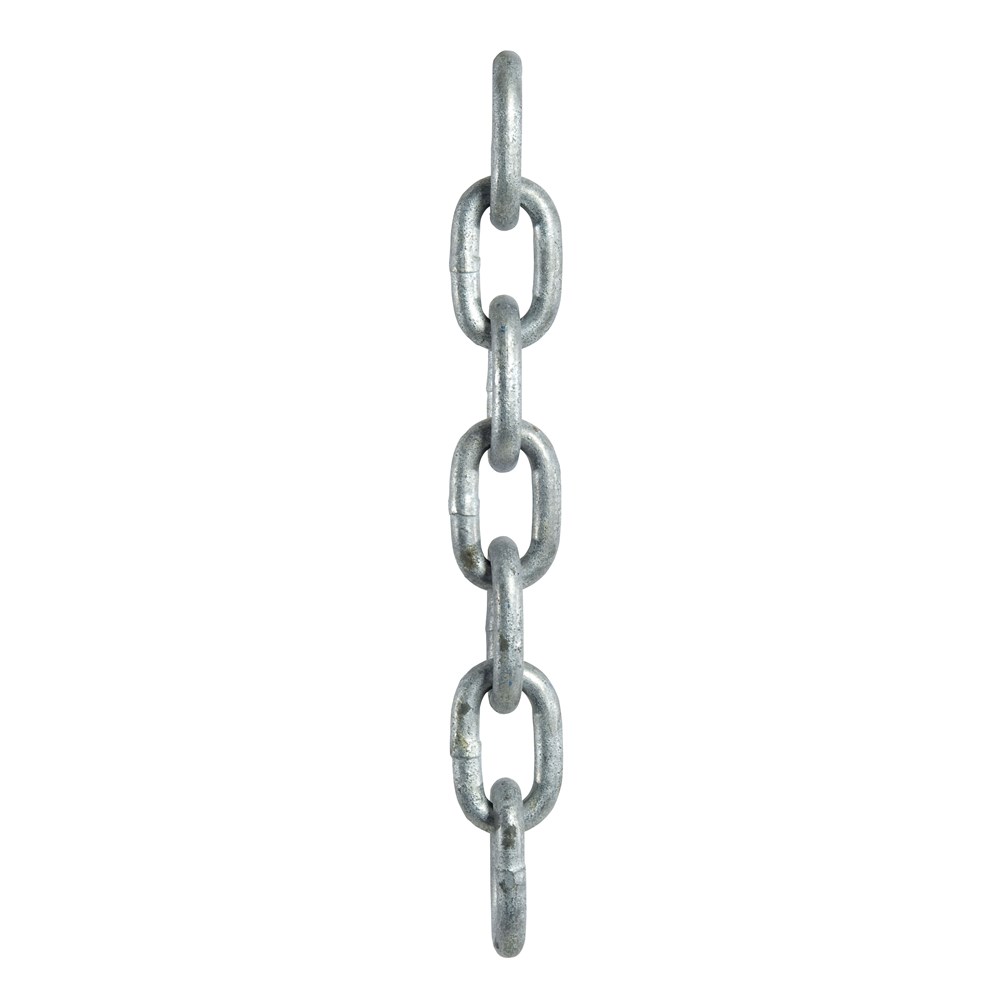

Beaver Galvanised Proof Coil Chain - Regular Link 8mm
100308per Each
$8.97 inc GSTTrade $8.07, save $0.90Trade accounts save 10%. Apply with your ABN
| F | 29.2mm |
| R | 35.8mm |
| S | 7.6mm |
| Finish | Galvanised |
| m/100kg | 86m/100kg |
| Nominal Size | 8mm |
About this product
Beaver Galvanised Proof Coil Chain - Regular Link 8mm is a non-rated general purpose chain for restraint, fencing, gates, barriers and tie-back work where no load rating is needed. It is not suitable for lifting. The 8mm nominal size runs a 7.6mm material thickness, with link dimensions of 29.2mm and 35.8mm, putting it in the middle of the regular link range for jobs that need a bit more bulk than the lighter sizes without the weight of 10mm and up.
Made from low carbon steel with a hot dipped galvanised finish, so it handles outdoor and washdown areas better than bare steel. The term proof coil refers to the consistent link count through a length, which keeps the chain running evenly through gates, hooks and sprocketed fittings. At 86m per 100kg it is still easy enough to handle and cut to length on site.
Common questions
- can you use 8mm proof coil chain for lifting
- No. Beaver proof coil chain is non-rated and made for general purpose use only, so it should never be used for lifting.
- what is 8mm proof coil chain made of
- Low carbon steel with a hot dipped galvanised finish, which suits outdoor and damp conditions better than an unfinished chain.
- what does proof coil mean in chain
- Proof coil refers to the number of consistent links in any one length, so the chain runs evenly through fittings.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 100303 | 3mm | 3mm | 16.6mm | 13.1mm | Galvanised | 534m/100kg |
| 100304 | 4mm | 3.9mm | 20mm | 15.6mm | Galvanised | 321m/100kg |
| 100305 | 5mm | 4.7mm | 25mm | 18mm | Galvanised | 230m/100kg |
| 100306 | 6mm | 6mm | 27mm | 24mm | Galvanised | 132m/100kg |
| 100308 | 8mm | 7.6mm | 35.8mm | 29.2mm | Galvanised | 86m/100kg |
| 100310 | 10mm | 9.5mm | 43.4mm | 34mm | Galvanised | 56m/100kg |
| 100313 | 13mm | 13mm | 50mm | 46mm | Galvanised | 28m/100kg |
| 100316 | 16mm | 15.8mm | 60mm | 56mm | Galvanised | 19m/100kg |
| 100320 | 20mm | 19.8mm | 72mm | 70mm | Galvanised | 12m/100kg |
| 100324 | 24mm | 25mm | 90mm | 85mm | Galvanised | 7.8m/100kg |
