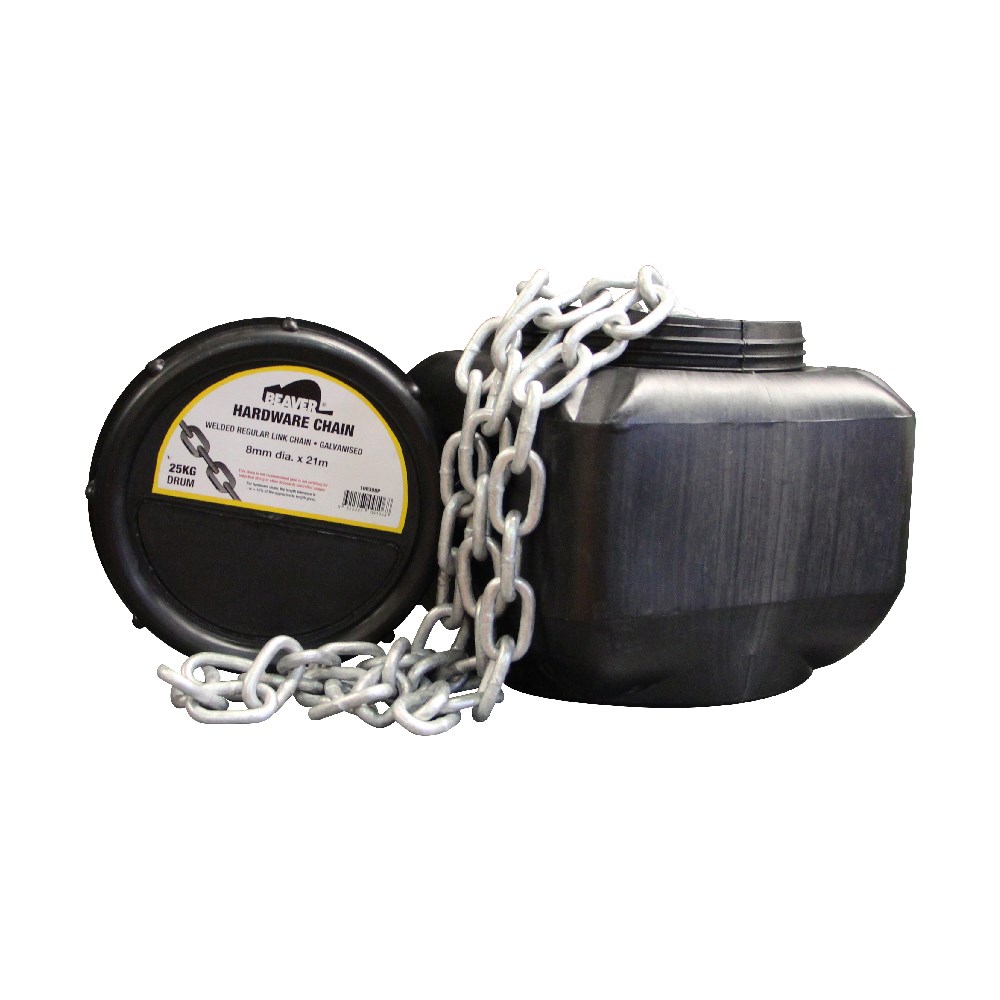

Beaver Proof Coil Chain Regular Link (25kg Pail) 4mm
100304Pper Each
$260.18 inc GSTTrade $234.16, save $26.02Trade accounts save 10%. Apply with your ABN
| F | 15.6mm |
| R | 20mm |
| S | 3.9mm |
| Finish | Galvanised |
| m/25kg | 80m/25kg |
| Nominal Size | 4mm |
About this product
Beaver Proof Coil Chain Regular Link in 4mm is a light gauge galvanised chain for general purpose jobs around the yard, the ute or the site. It is the smallest end of the range, with a 3.9mm material thickness, a 20mm link reach and 15.6mm across the link face, so it threads through smaller shackles and hardware that heavier sizes will not take.
Made from low carbon steel with a galvanised finish for knocking back surface rust, it is a non-rated chain. That means no working load limit and no lifting, slinging or overhead work. Use it for fencing, gates, restraint of static gear and general tie-down duties. The proof coil name refers to the consistent link count through the length, which keeps the chain running evenly over a sprocket or through a guide.
Common questions
- can you use 4mm proof coil chain for lifting
- No. This is a non-rated commercial chain for general purpose use only, and it is not suitable for lifting.
- what is 4mm beaver proof coil chain made of
- Low carbon steel with a galvanised finish, which helps hold off surface rust in outdoor use.
- what does proof coil mean on a chain
- It refers to the number of consistent links in any one length, so the chain is uniform from end to end.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/25kg |
|---|---|---|---|---|---|---|
| 100303P | 3mm | 3mm | 16.6mm | 13.1mm | Galvanised | 133m/25kg |
| 100304P | 4mm | 3.9mm | 20mm | 15.6mm | Galvanised | 80m/25kg |
| 100305P | 5mm | 4.7mm | 25mm | 18mm | Galvanised | 57m/25kg |
| 100306P | 6mm | 6mm | 27mm | 24mm | Galvanised | 33m/25kg |
| 100308P | 8mm | 7.6mm | 35.8mm | 29.2mm | Galvanised | 21m/25kg |
