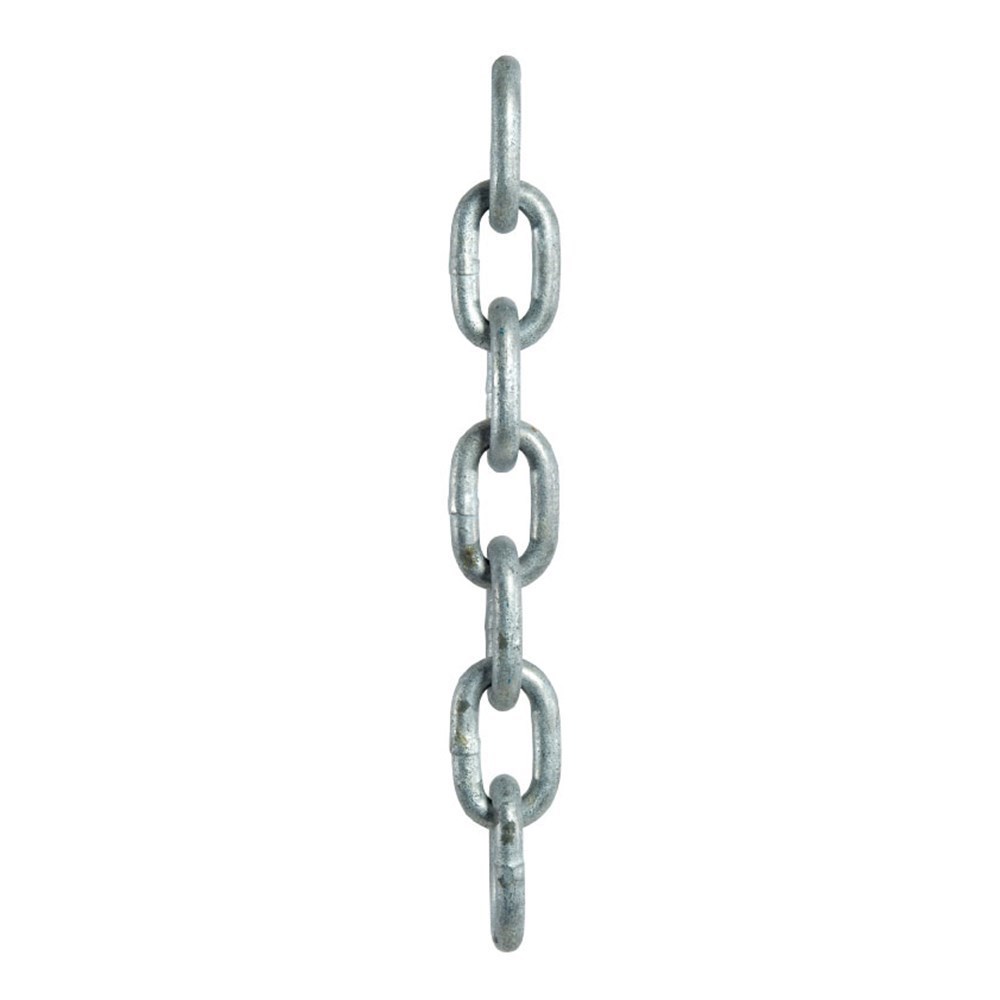

Beaver Galvanised Proof Coil Chain - Regular Link 4mm
100304per Each
$2.93 inc GSTTrade $2.64, save $0.29Trade accounts save 10%. Apply with your ABN
| F | 15.6mm |
| R | 20mm |
| S | 3.9mm |
| Finish | Galvanised |
| m/100kg | 321m/100kg |
| Nominal Size | 4mm |
About this product
The Beaver Galvanised Proof Coil Chain - Regular Link 4mm is a light general purpose chain for restraint, fencing, gates and tie-back work where no lifting is involved. It is the smallest end of the regular link range, with a 3.9mm material size, 15.6mm inside link length and 20mm outside width, so it runs easily through small shackles and eye bolts. At 321m/100kg it is light in the hand and easy to cut and fit on site.
Made from low carbon steel with a hot dipped galvanised finish, it handles outdoor exposure better than bare steel. Worth being clear on one point: this is a non-rated chain. It carries no working load limit and must not be used for lifting or overhead work. If you need to pick up a load, step across to a graded lifting chain. For everything else around the yard, the 4mm regular link does the job.
Common questions
- is 4mm proof coil chain rated for lifting?
- No. Beaver proof coil chain is a non-rated chain for general purpose use only and is not suitable for lifting.
- what is 4mm proof coil chain made of?
- Low carbon steel with a hot dipped galvanised finish, which helps it stand up to outdoor conditions.
- what are the link dimensions of the 4mm regular link chain?
- The material size is 3.9mm, with a 15.6mm inside link length and 20mm across the link. It works out to 321m per 100kg.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 100303 | 3mm | 3mm | 16.6mm | 13.1mm | Galvanised | 534m/100kg |
| 100304 | 4mm | 3.9mm | 20mm | 15.6mm | Galvanised | 321m/100kg |
| 100305 | 5mm | 4.7mm | 25mm | 18mm | Galvanised | 230m/100kg |
| 100306 | 6mm | 6mm | 27mm | 24mm | Galvanised | 132m/100kg |
| 100308 | 8mm | 7.6mm | 35.8mm | 29.2mm | Galvanised | 86m/100kg |
| 100310 | 10mm | 9.5mm | 43.4mm | 34mm | Galvanised | 56m/100kg |
| 100313 | 13mm | 13mm | 50mm | 46mm | Galvanised | 28m/100kg |
| 100316 | 16mm | 15.8mm | 60mm | 56mm | Galvanised | 19m/100kg |
| 100320 | 20mm | 19.8mm | 72mm | 70mm | Galvanised | 12m/100kg |
| 100324 | 24mm | 25mm | 90mm | 85mm | Galvanised | 7.8m/100kg |
