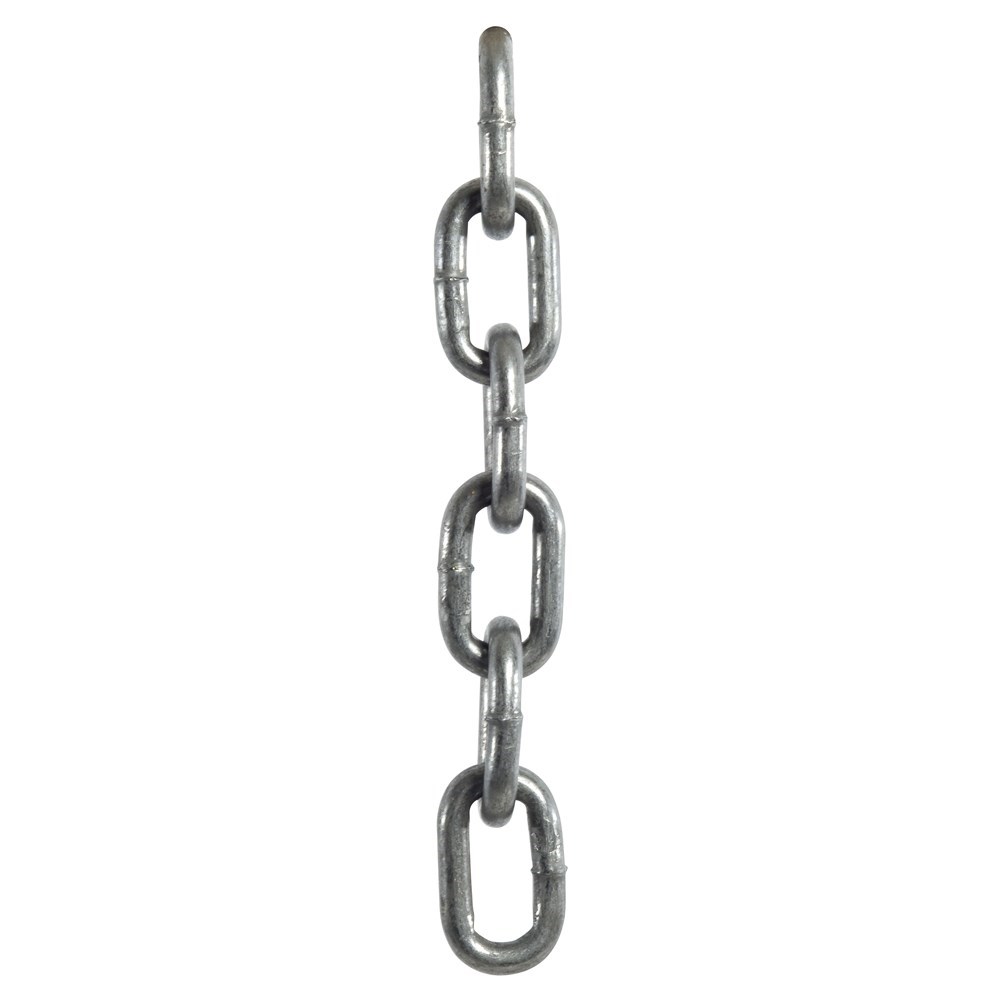

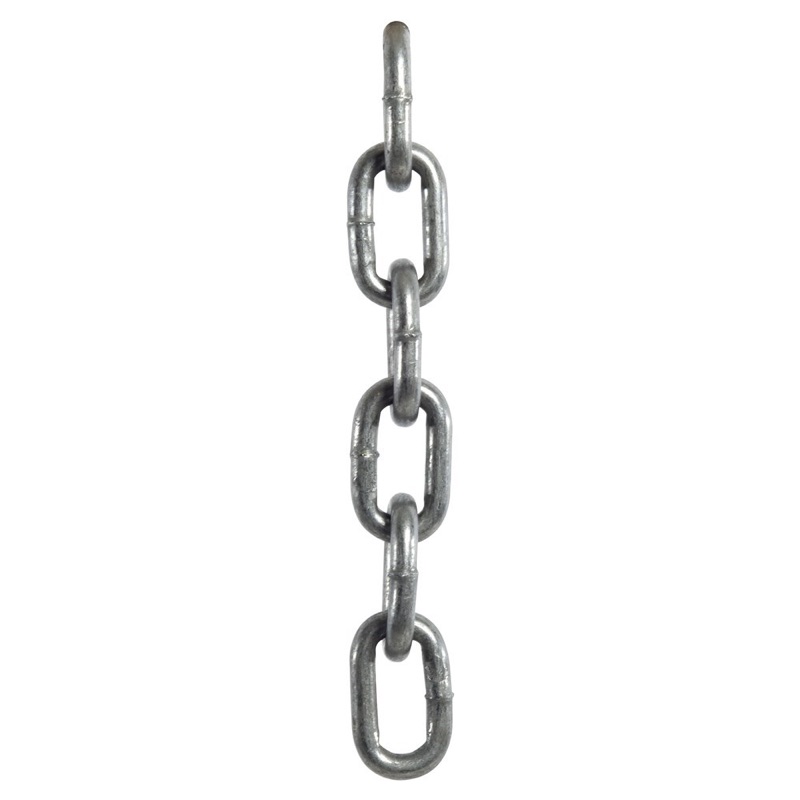

Beaver Self Colour Proof Coil Chain - Regular Link 10mm
100110per Each
$8.92 inc GSTTrade $8.03, save $0.89Trade accounts save 10%. Apply with your ABN
| F | 34mm |
| R | 43.4mm |
| S | 9.5mm |
| Finish | Self Colour |
| m/100kg | 58m/100kg |
| Nominal Size | 10mm |
About this product
The Beaver Self Colour Proof Coil Chain - Regular Link 10mm is a non-rated commercial chain for general purpose work around the yard, site or workshop. It is made from low carbon steel with a self colour finish, and at 10mm nominal size it sits in the heavier end of the regular link range, with a 9.5mm material thickness, 34mm inside link width and 43.4mm link length. Figure roughly 58m per 100kg of weight.
The term proof coil refers to the consistent link count through any given length, which keeps the chain running evenly. Use it for securing, retaining, fencing, barriers and other static jobs. It is not suitable for lifting. If you need to sling a load, step up to a rated grade chain instead and keep this one for the general tasks it was built for.
Common questions
- can you lift with 10mm proof coil chain
- No. This is a non-rated chain and is not suitable for lifting purposes, so use a rated lifting chain for any load you need to pick up.
- what is proof coil chain made of
- Low carbon steel with a self colour finish, which means no galvanising or coating over the bare steel.
- what size are the links on the 10mm Beaver regular link chain
- The 10mm nominal size runs 9.5mm material, 34mm inside link width and 43.4mm link length.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 100103 | 3mm | 3mm | 16.6mm | 13.1mm | Self Colour | 591m/100kg |
| 100105 | 5mm | 4.7mm | 25mm | 18mm | Self Colour | 246m/100kg |
| 100106 | 6mm | 6mm | 27mm | 24mm | Self Colour | 140m/100kg |
| 100108 | 8mm | 7.6mm | 35.8mm | 29.2mm | Self Colour | 90m/100kg |
| 100110 | 10mm | 9.5mm | 43.4mm | 34mm | Self Colour | 58m/100kg |
| 100113 | 13mm | 13mm | 50mm | 46mm | Self Colour | 29m/100kg |
| 100116 | 16mm | 15.8mm | 60mm | 56mm | Self Colour | 20m/100kg |
| 100120 | 20mm | 19.8mm | 72mm | 70mm | Self Colour | 12.6m/100kg |
| 100124 | 24mm | 25mm | 90mm | 85mm | Self Colour | 8m/100kg |
