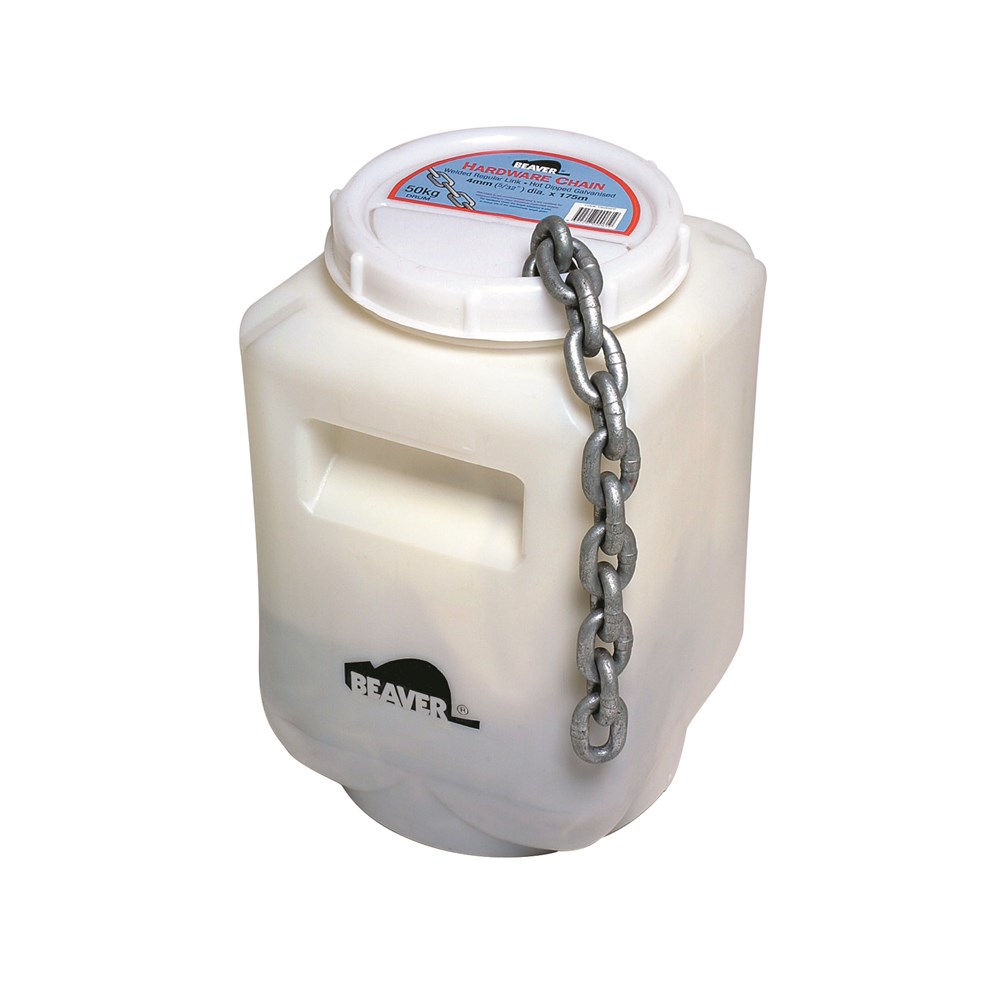

Beaver Proof Coil Chain Regular Link (50kg Pail) 4mm x Self Colour
100104PPper Each
$271.25 inc GSTTrade $244.13, save $27.12Trade accounts save 10%. Apply with your ABN
| F | 15.6mm |
| R | 20mm |
| S | 3.9mm |
| Finish | Self Colour |
| Nominal Size | 4mm |
| Metres per 50kg | 173m/50kg |
About this product
Beaver Proof Coil Chain Regular Link in 4mm self colour is a non-rated commercial chain for general purpose jobs around the yard, site or workshop. It is made from low carbon steel with a self colour finish, so there is no coating to hide the link surface. The 4mm nominal size runs a 3.9mm material thickness, with a 15.6mm link length and 20mm across the link, making it the lighter end of the regular link range.
This chain is not suitable for lifting, slinging or any overhead work. Use it for fencing, gates, light restraint, hanging signs and similar tasks where load rating is not a factor. The "proof coil" name refers to the consistent link count through the length, which keeps the chain running true through a shackle or over a sprocket. Self colour will surface rust outdoors, so keep it dry or give it a wipe of oil.
Common questions
- can you use 4mm proof coil chain for lifting
- No. Beaver Proof Coil chain is non-rated and not suitable for any lifting purposes, so keep it to general purpose work only.
- what is 4mm proof coil chain made of
- Low carbon steel with a self colour finish, meaning it is left uncoated.
- what does proof coil mean on chain
- Proof coil refers to the number of consistent links in any one length, so the link pitch stays even through the chain.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | Metres per 50kg |
|---|---|---|---|---|---|---|
| 100103PP | 3mm | 3mm | 16.6mm | 13.1mm | Self Colour | 256m/50kg |
| 100203PP | 3mm | 3mm | 16.6mm | 13.1mm | Electro Galvanised | 250m/50kg |
| 100303PP | 3mm | 3mm | 16.6mm | 13.1mm | Galvanised | 250m/50kg |
| 100104PP | 4mm | 3.9mm | 20mm | 15.6mm | Self Colour | 173m/50kg |
| 100304PP | 4mm | 3.9mm | 20mm | 15.6mm | Galvanised | 175m/50kg |
| 100105PP | 5mm | 4.7mm | 25mm | 18mm | Self Colour | 101.5m/50kg |
| 100305PP | 5mm | 4.7mm | 25mm | 18mm | Galvanised | 120m/50kg |
| 100106PP | 6mm | 6mm | 27mm | 24mm | Self Colour | 64.5m/50kg |
| 100306PP | 6mm | 6mm | 27mm | 24mm | Galvanised | 64.9m/50kg |
| 100108PP | 8mm | 7.6mm | 35.8mm | 29.2mm | Self Colour | 39m/50kg |
| 100308PP | 8mm | 7.6mm | 35.8mm | 29.2mm | Galvanised | 40.6m/50kg |
| 100110PP | 10mm | 9.5mm | 43.4mm | 34mm | Self Colour | 24m/50kg |
| 100310PP | 10mm | 9.5mm | 43.4mm | 34mm | Galvanised | 25m/50kg |
| 100113PP | 13mm | 13mm | 50mm | 46mm | Self Colour | 14.85m/50kg |
| 100313PP | 13mm | 13mm | 50mm | 46mm | Galvanised | 14.7m/50kg |
